Instrument(current Or Voltage) Transformer Cores

Current transformer

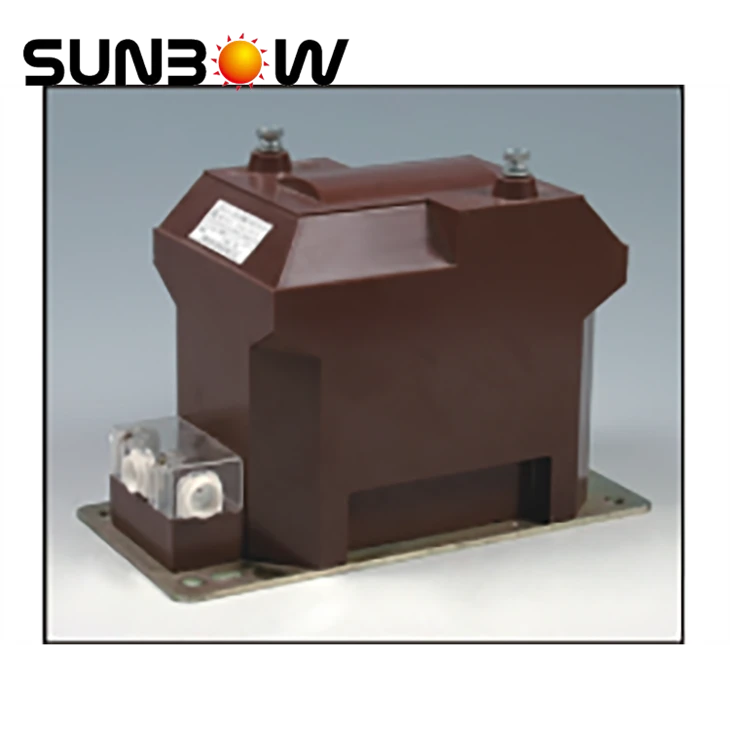

Voltage transformer

Instrument transformer

Other sizes and the performance request can be customized .

1. Extremely High Magnetic Permeability

What it means: Permeability is a measure of how easily a material can be magnetized. Nanocrystalline alloys have a permeability that is typically 10 to 100 times higher than that of high-permeability ferrites and 5 to 20 times higher than that of amorphous metals.

Benefit: This allows for the design of transformers with very high magnetizing inductance. This is critical for components like common-mode chokes, where a high impedance is needed to suppress unwanted noise. It also means fewer turns are needed on the winding to achieve the desired inductance, simplifying construction and reducing copper losses.

2. Very Low Core Losses (Hysteresis & Eddy Current)

What it means: Core loss is the energy dissipated as heat within the core material when it is repeatedly magnetized and demagnetized (hysteresis loss) and from circulating currents induced in the core (eddy current loss).

Benefit: Higher efficiency and cooler operation. This is the single most important advantage for high-frequency power conversion, as it allows for higher operating frequencies without the core overheating.

3. Excellent Thermal Stability

What it means: The magnetic properties (e.g., permeability, core loss) of nanocrystalline material remain stable over a wide temperature range (from -55°C to over 120°C+).

Benefit: Consistent performance in real-world environments where temperature fluctuates. This reliability is crucial for industrial, automotive, and renewable energy applications.

4. High Saturation Flux Density (Bsat)

What it means: Saturation flux density is the maximum magnetic flux a core can handle before it cannot become any more magnetized. Nanocrystalline has a Bsat of about 1.2 to 1.3 Tesla, which is significantly higher than ferrites (~0.5 T) and comparable to the best silicon steel.

Benefit: A higher Bsat means the core can handle more power or store more energy in a given size before saturating. This allows for more compact and powerful transformer designs compared to ferrite cores.

The "nano" in nanocrystalline is key. The material is created by rapidly solidifying a molten metal alloy (typically iron-based with niobium, copper, and silicon) to form an amorphous ribbon. This ribbon is then carefully annealed (heat-treated), which causes tiny, nanoscale crystalline grains to form within the amorphous matrix.

This unique structure gives it the best of both worlds:

• The nanocrystalline grains provide the high saturation flux density.
• The amorphous matrix around the grains provides high electrical resistivity, suppressing eddy currents.
• The tiny grain size (smaller than the magnetic domain wall width) eliminates the barriers that cause hysteresis loss.

The advantages of nanocrystalline cores make them ideal for demanding applications where efficiency, size, and performance are critical:

• High-Frequency Power Transformers: In switch-mode power supplies (SMPS), solar inverters, and welding equipment operating from 10 kHz to 100+ kHz.
• Common-Mode Chokes (CMCs): For electromagnetic interference (EMI) filtering in variable frequency drives (VFDs), EV chargers, and industrial equipment. Their high permeability provides superior noise suppression.
• Current Transformers (CTs) and Sensors: Their high permeability and linear magnetic characteristics allow for highly accurate measurement of current with minimal phase error.
• Differential Mode Inductors: In power factor correction (PFC) circuits and DC-DC converters.
• The advantage of a nanocrystalline transformer core lies in its unbeatable combination of low loss and high permeability at high frequencies. This enables the design of smaller, more efficient, and more powerful magnetic components for modern electronic systems that operate at ever-increasing frequencies, making it a cornerstone technology for green energy, electromobility, and advanced power electronics.
