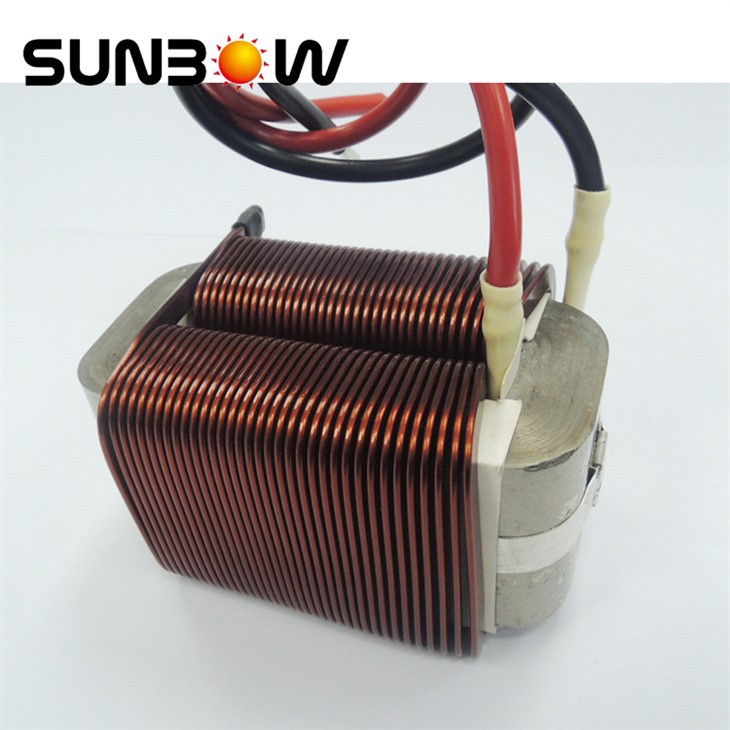

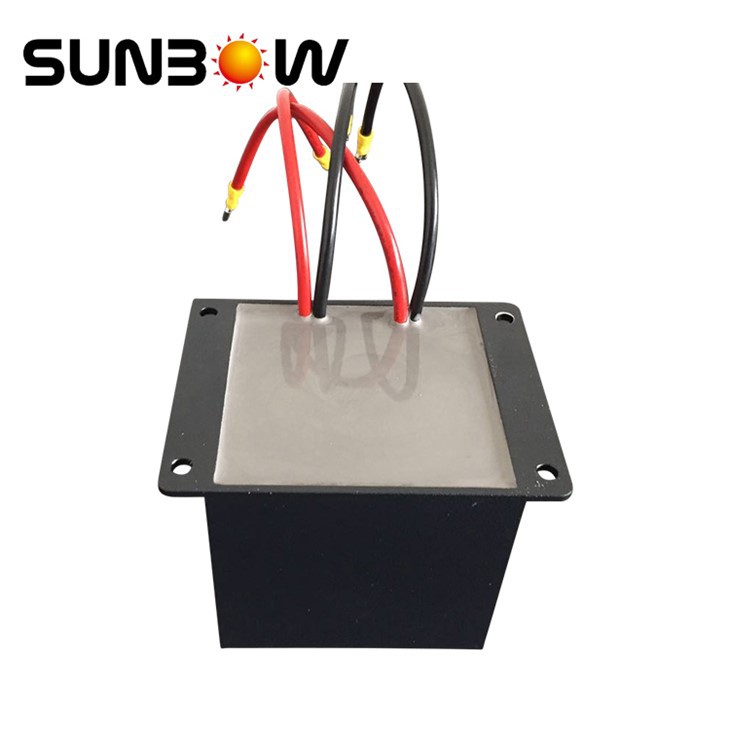

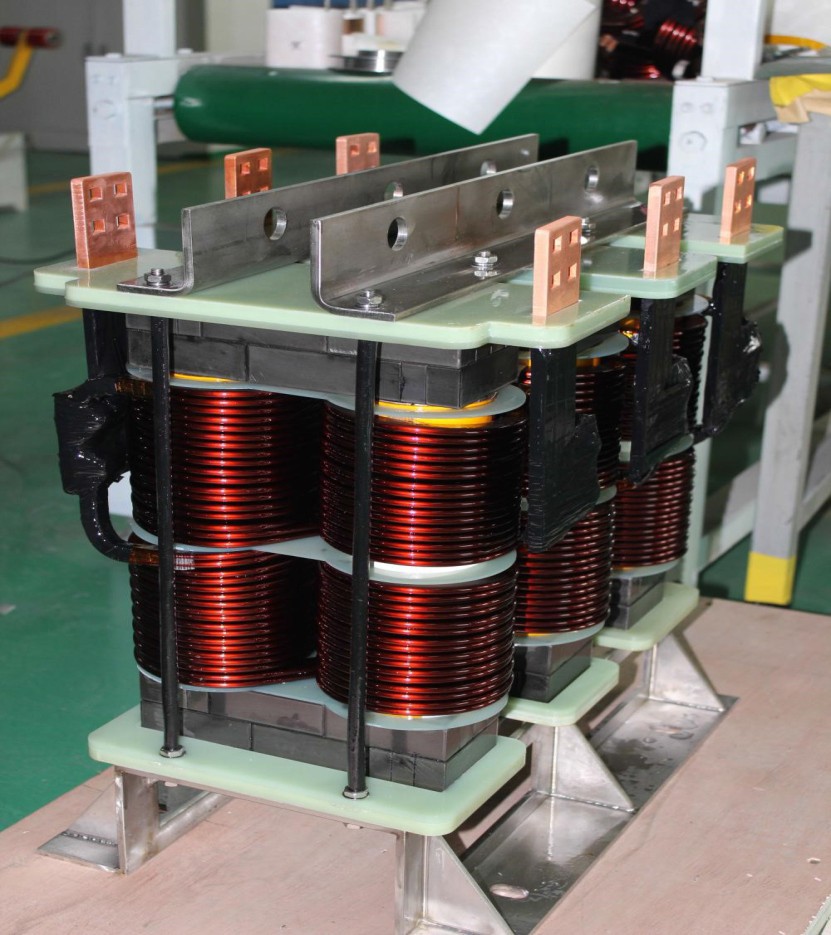

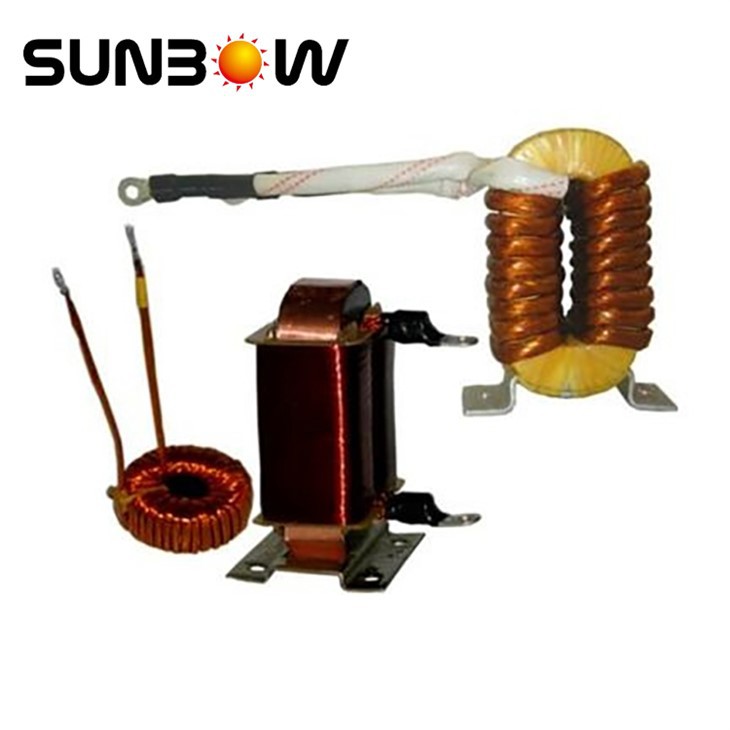

High Frequency Reactor
●High efficiency and low temperature rise;
●Excellent temperature stability;
●Excellent frequency characteristics;
●Small size.

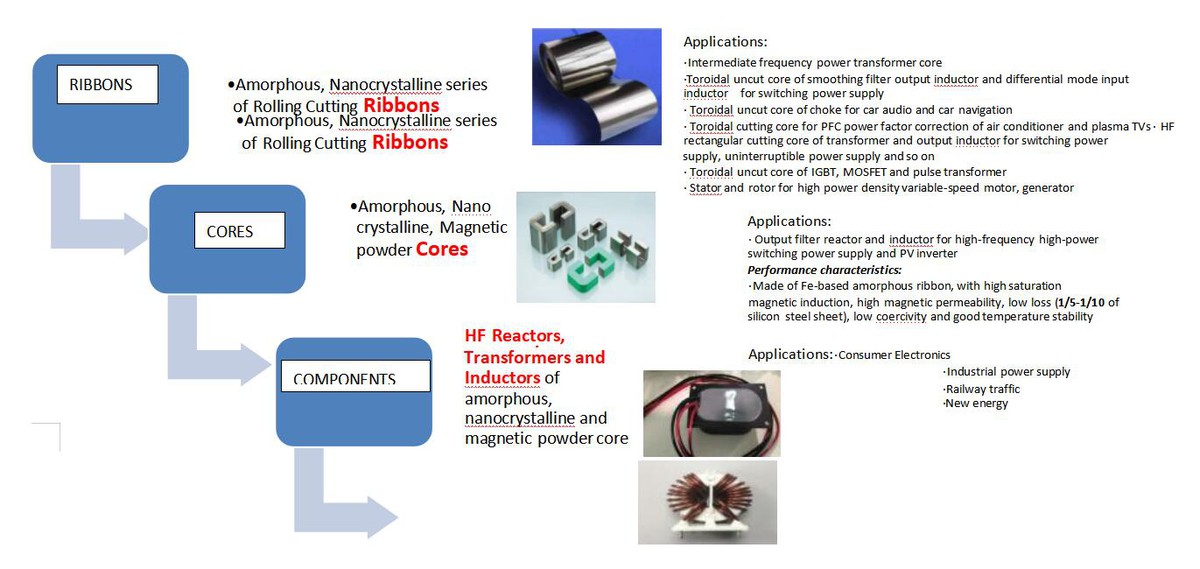

Applications
Photovoltaic, wind power, electric vehicles, rail locomotives, home appliances, uninterruptible power supplies and other industries.
Performance features
●High efficiency and low temperature rise;
●Excellent temperature stability;
●Excellent frequency characteristics;
●Small size.

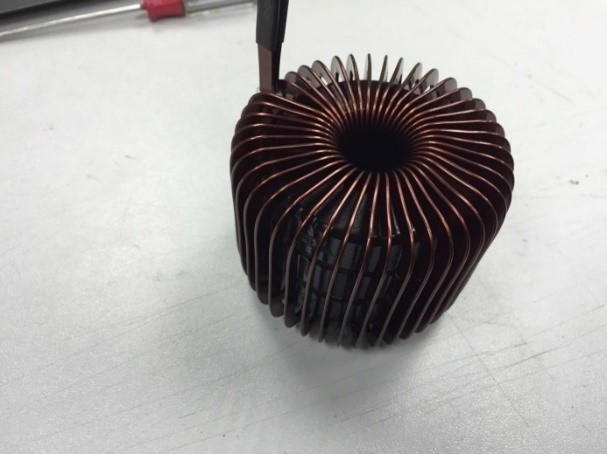

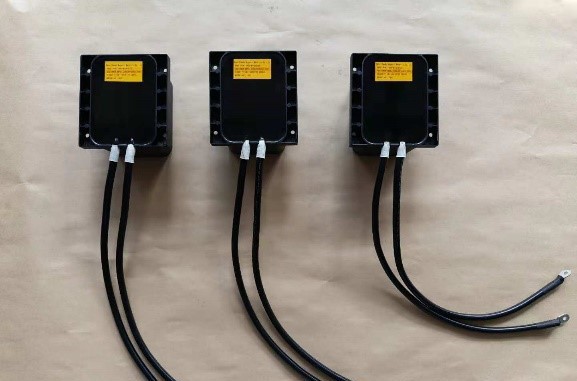

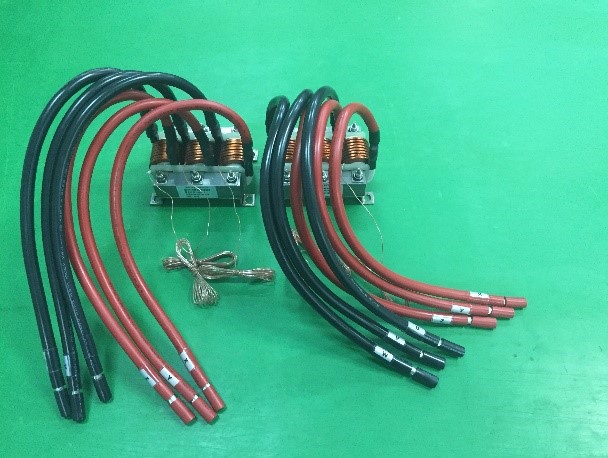

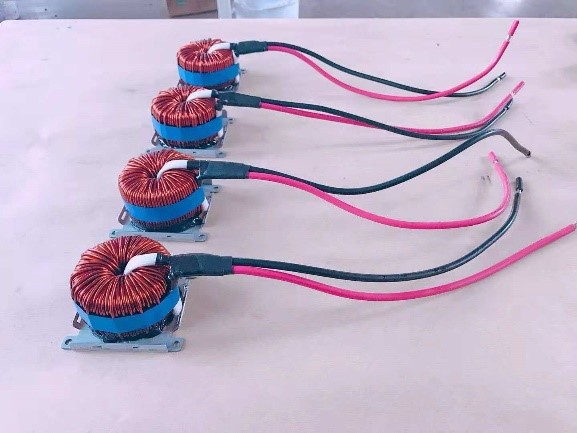

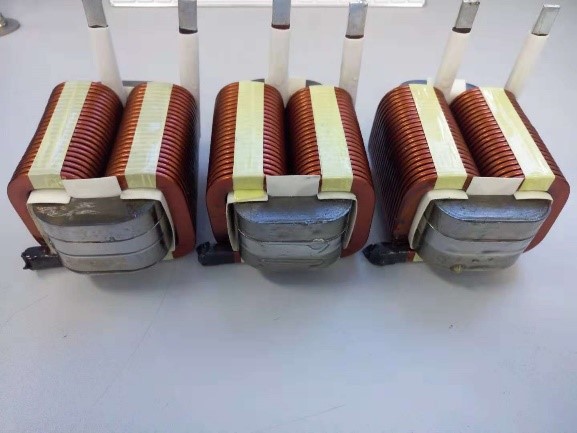

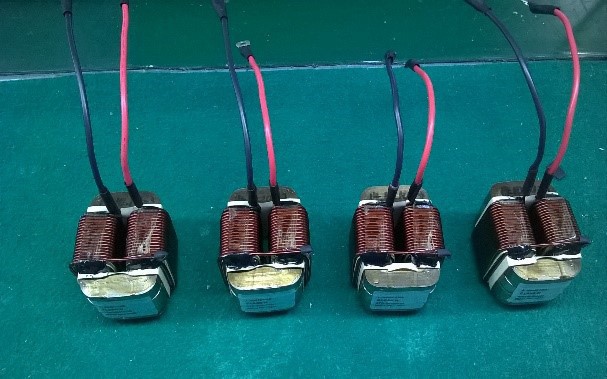

10kw product
|
10Kw AC (Electric Characters) |
||||
|
NO. |
Name |
Spec. |
Testing condition |
Testing instrument |
|
1 |
Inductance |
0.805mH±10% |
10KHZ 0.1V |
CH1062 |
|
2 |
DC Resistance |
3.0mΩ MAX |
20℃ |
VR-131 |
|
3 |
Insulation resistance |
≥100MΩ |
500Vdc |
YD2666 |
|
4 |
Dielectric strength |
Normal |
2.5KV/3mA/60s |
CS2672DX |
|
5 |
Inter turn withstand voltage |
Normal |
2500Vdc |
TH-2882A |
|
6 |
Noise |
＜60dB |
1m |
|

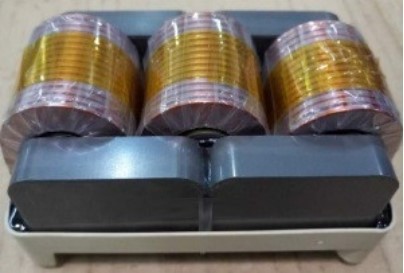

30kw AC products
|
30Kw AC (Electric Characters) |
||||
|
NO. |
Name |
Spec. |
Testing condition |
Testing instrument |
|
1 |
Inductance |
0.60mH +0%/-10% |
16KHZ 1V |
CH1062 |
|
≥0.2mH |
80A 400V 1000us |
DPG10-1000A ,edk |
||
|
≥0.41mH |
90A 400V 1000us |
|||
|
2 |
DC Resistance |
30.0mΩ MAX |
20℃ |
VR-131 |
|
3 |
Insulation resistance |
≥100MΩ |
500Vdc |
YD2666 |
|
4 |
Dielectric strength |
Normal |
2.5KV/3mA/60s |
CS2672DX |
|
5 |
Interturn withstand voltage |
Normal |
2500Vdc |
TH-2882A |
|
6 |
Noise |
＜60dB |
1m |
|

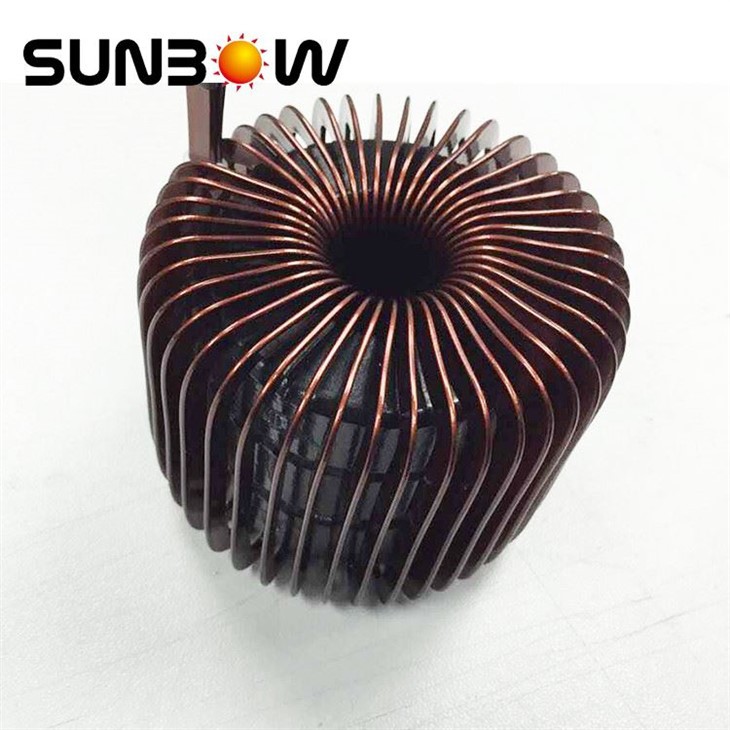

30kw DC Product
|
30Kw DC (Electric Characters) |
||||
|
NO. |
Name |
Spec. |
Testing condition |
Testing instrument |
|
1 |
Inductance |
0.60mH +0%/-10% |
16KHZ 1V |
CH1062 |
|
≥0.2mH |
70A 400V 1000us |
DPG10-1000A ,edk |
||
|
≥0.41mH |
80A 400V 1000us |
|||
|
2 |
DC Resistance |
30.0mΩ MAX |
20℃ |
VR-131 |
|
3 |
Insulation resistance |
≥100MΩ |
500Vdc |
YD2666 |
|
4 |
Dielectric strength |
Normal |
2.5KV/3mA/60s |
CS2672DX |
|
5 |
Interturn withstand voltage |
Normal |
2500Vdc |
TH-2882A |
|
6 |
Noise |
＜60dB |
1m |
|

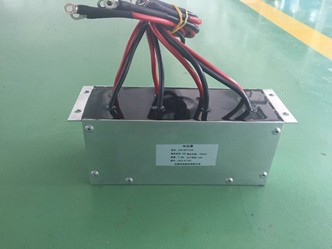

40KW AC product
|
40Kw AC (Electric Characters) |
||||
|
NO. |
Name |
Spec. |
Testing condition |
Testing instrument |
|
1 |
Inductance |
0.45mH +10%/-10% |
16KHZ 1V |
CH1062 |
|
≥0.35mH |
90A 400V 1000us |
DPG10-1000A ,edk |
||
|
≥0.28mH |
110A 400V 1000us |
|||
|
2 |
DC Resistance |
20.0mΩ MAX |
20℃ |
VR-131 |
|
3 |
Insulation resistance |
≥100MΩ |
500Vdc |
YD2666 |
|
4 |
Dielectric strength |
Normal |
2.5KV/3mA/60s |
CS2672DX |
|
5 |
Interturn withstand voltage |
Normal |
2500Vdc |
TH-2882A |
|
6 |
Noise |
＜60dB |
1m |
|

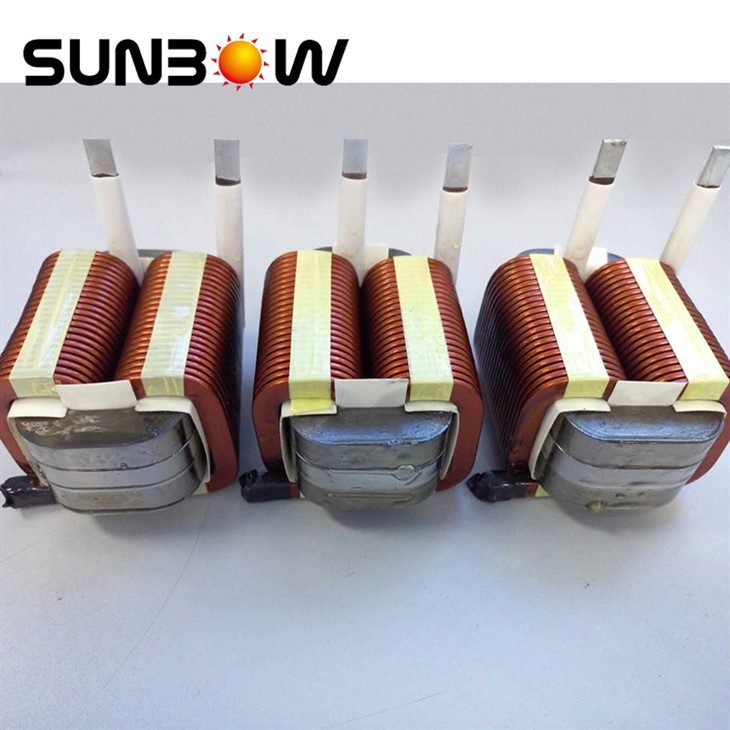

50kw product
|
50Kw AC (Electric Characters) |
||||
|
NO. |
Name |
Spec. |
Testing condition |
Testing instrument |
|
1 |
Inductance |
0.2mH ±10% |
16KHZ 1V |
CH1062 |
|
≥0.16mH |
140A 400V 1000us |
DPG10-1000A ,edk |
||
|
≥0.14mH |
160A 400V 1000us |
|||
|
2 |
DC Resistance |
7.0mΩ MAX |
20℃ |
VR-131 |
|
3 |
Insulation resistance |
≥100MΩ |
500Vdc |
YD2666 |
|
4 |
Dielectric strength |
Normal |
2.5KV/3mA/60s |
CS2672DX |
|
5 |
Interturn withstand voltage |
Normal |
2500Vdc |
TH-2882A |
|
6 |
Noise |
＜60dB |
1m |
|

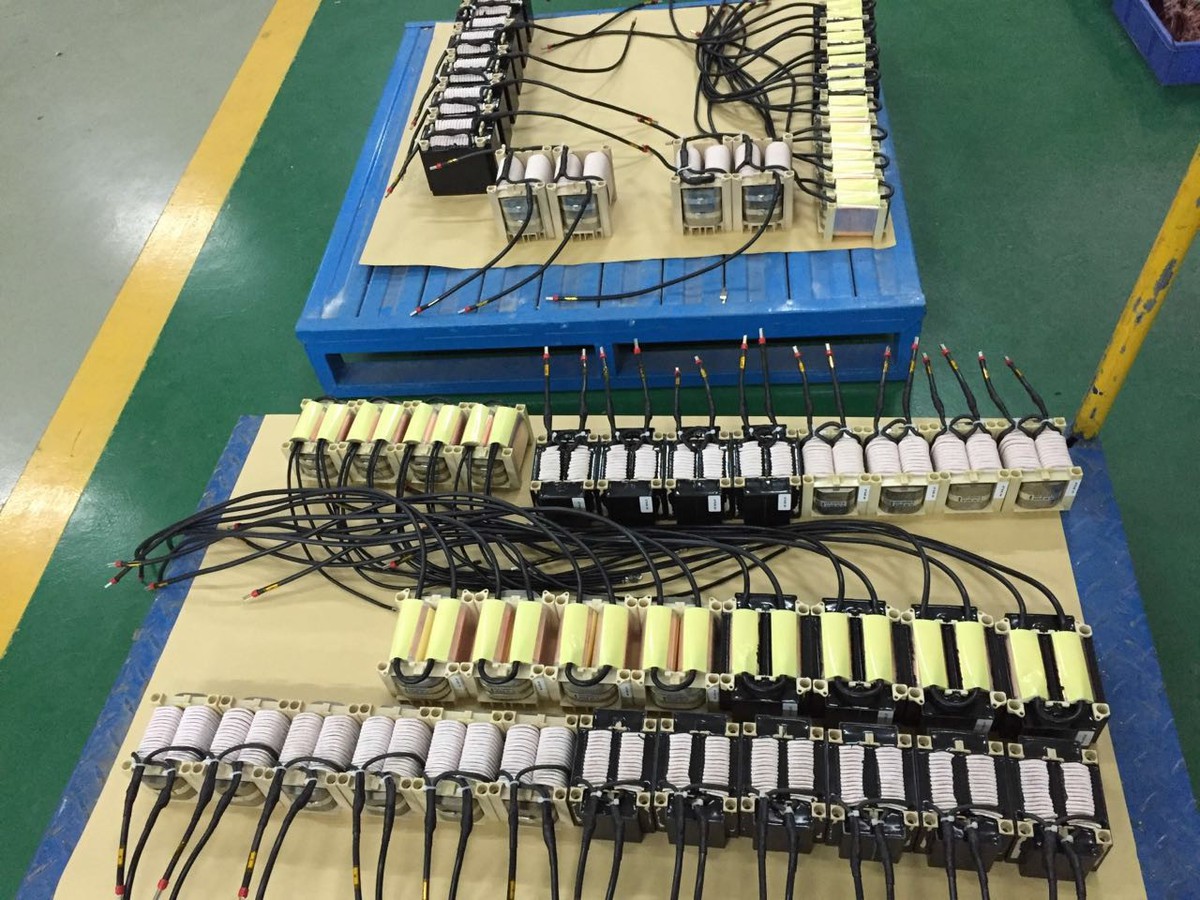

60kw product
|
60Kw AC (Electric Characters) |
||||
|
NO. |
Name |
Spec. |
Testing condition |
Testing instrument |
|
1 |
Inductance |
0.22mH ±10% |
16KHZ 1V |
CH1062 |
|
≥0.17mH |
170A 400V 1000us |
DPG10-1000A ,edk |
||
|
≥0.145mH |
190A 400V 1000us |
|||
|
2 |
DC Resistance |
15.0mΩ MAX |
20℃ |
VR-131 |
|
3 |
Insulation resistance |
≥100MΩ |
500Vdc |
YD2666 |
|
4 |
Dielectric strength |
Normal |
2.5KV/3mA/60s |
CS2672DX |
|
5 |
Interturn withstand voltage |
Normal |
2500Vdc |
TH-2882A |
|
6 |
Noise |
＜60dB |
1m |
|

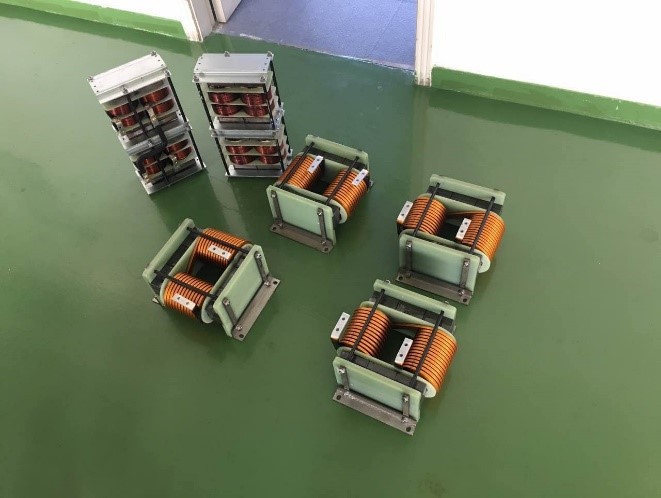

80kw DC product
|
80Kw DC (Electric Characters) |
||||
|
NO. |
Name |
Spec. |
Testing condition |
Testing instrument |
|
1 |
Inductance |
25μH +0% |
16KHZ 1V |
CH1062 |
|
≥24μH |
200A 400V 1000us |
DPG10-1000A ,edk |
||
|
≥20μH |
220A 400V 1000us |
|||
|
2 |
DC Resistance |
3.0mΩ MAX |
20℃ |
VR-131 |
|
3 |
Insulation resistance |
≥100MΩ |
500Vdc |
YD2666 |
|
4 |
Dielectric strength |
Normal |
2.5KV/3mA/60s |
CS2672DX |
|
5 |
Interturn withstand voltage |
Normal |
2500Vdc |
TH-2882A |
|
6 |
Noise |
＜60dB |
1m |
|
80kw product
|
80Kw AC (Electric Characters) |
||||
|
NO. |
Name |
Spec. |
Testing condition |
Testing instrument |
|
1 |
Inductance |
0.18mH ±10% |
16KHZ 1V |
CH1062 |
|
≥0.145mH |
200A 400V 1000us |
DPG10-1000A ,edk |
||
|
≥0.130mH |
220A 400V 1000us |
|||
|
2 |
DC Resistance |
3.0mΩ MAX |
20℃ |
VR-131 |
|
3 |
Insulation resistance |
≥100MΩ |
500Vdc |
YD2666 |
|
4 |
Dielectric strength |
Normal |
2.5KV/3mA/60s |
CS2672DX |
|
5 |
Interturn withstand voltage |
Normal |
2500Vdc |
TH-2882A |
|
6 |
Noise |
＜60dB |
1m |
|
125kw product
|
125Kw AC (Electric Characters) |
||||
|
NO. |
Name |
Spec. |
Testing condition |
Testing instrument |
|
1 |
Inductance |
185μH ±10% |
16KHZ 1V |
CH1062 |
|
≥168μH |
220A 400V 1000us |
DPG10-1000A ,edk |
||
|
≥159μH |
240A 400V 1000us |
|||
|
2 |
DC Resistance |
9.0mΩ MAX |
20℃ |
VR-131 |
|
3 |
Insulation resistance |
≥100MΩ |
500Vdc |
YD2666 |
|
4 |
Dielectric strength |
Normal |
2.5KV/3mA/60s |
CS2672DX |
|
5 |
Interturn withstand voltage |
Normal |
2500Vdc |
TH-2882A |
|
6 |
Noise |
＜60dB |
1m |
|
