FE-SI-AL Cores

Fe-Si-Al alloy powder cores are a kind of soft magnetic powder cores with nominal composition of 85% iron, 9% silicon and 6% aluminum. As Fe-Si-Al cores were firstly developed by Japanese in Sendust in the 1930s, so they are well known as Sendust cores. They are also known as Kool Mμ Cores (Magnetics).

Near-zero magnetostriction makes Sendust cores ideal for eliminating audible noise in filter inductors.

Iron powder cores are produced mainly as a toroidal cores, but there are also available in E, U shape and cylindrical cores.

Sendust powder cores Fe-Si-Al generate slightly higher power loss than the MPP and High Flux, but much lower than iron powder cores. Probably the fact that they belong to a group cheapest magnetic materials (produced from alloys of iron) has a significant impact on the extensive use of Sendust core in production output chokes, PFC chokes and pulse transformers.

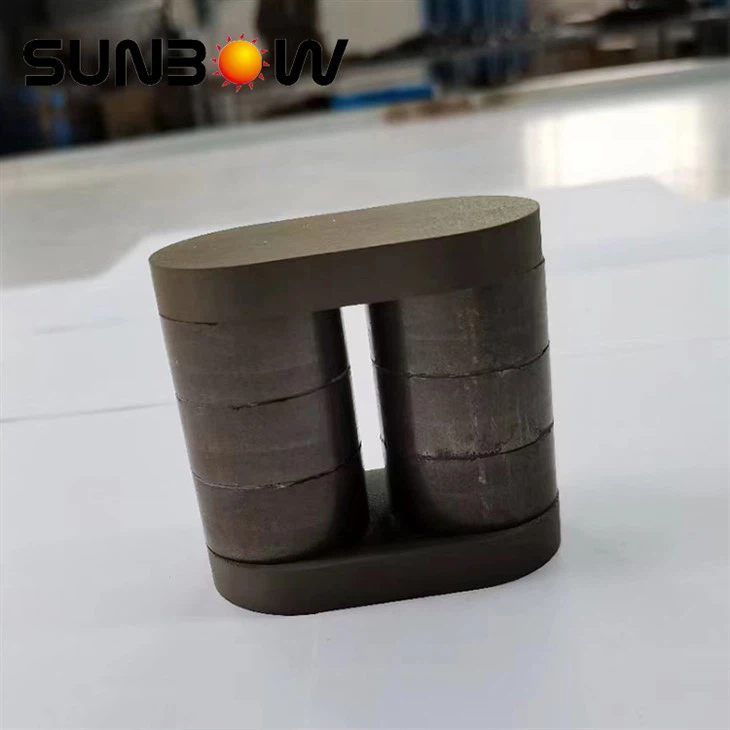

Mostly alloy powder cores are produced as toroidal cores. But it should be noted that the alloy powder cores are also available in the form of large block shapes and which can be freely configured and build high-power inductive components.

Core Losses Significantly

Much lower core losses than iron powder cores
• Good DC-Bias Characteristics

• Cost between Iron Powder

Cores and MPP

– Medium high saturation flux density of 10500 Gauss
– Near zero magnetostriction coefficient
– High temperature stability
– Permeability from 26 to 125

Switching Regulator Inductors

In-line noise filters

Pulse transformers

Fly-back transformers

PFC CHOKES

Super Sendust Core, also known as second-generation Fe-Si-Al Core, is a nearly spherical Fe-Si-AI metal powder core made by nitrogen atomization technology. The traditional Fe-Si-AI powder is prepared by mechanical crushing, and the powder morphology is irregular triangular powder. The spherical Fe-Si-AI powder has higher DC superposition characteristics and lower power loss than the metal magnetic powder core produced by the traditional Fe-Si-AI powder. This product is especially suitable for high-current workplaces, such as: server power, electric vehicles, household appliances, solar photovoltaic ,UPS,Industrial power supply, variable frequency air conditioning, automobile charging pile, output inductance, PFC inductance, reactor inductance.

What can you buy from us?
Amorphous alloy Ribbon/Strip/Amorphous Transformer Iron Cores/Magnetic Powder Cores/Nanocrystalline Ultra-thin Ribbon/Nanocyrstalline cores /silicon steel cores/Common-mode Inductor/reactores/metering parts, etc.

What services can we provide?
Almost all products can be customized according to customer’s needs， please ask clearly with our Customer Service.

Our after-sales Guarantee:

●For all problems encountered by customers, we will respond within 4 hours, and submit the solution within three working days.

●Customer quotation response time is 24 hours.

●It is planned to set up a “customer service center” in countries to flexibly respond to customer requirements and improve service levels.

●The product warranty period is 30 months for product delivery or 24 months for product installation, and provides lifetime after-sales service.

●The company is building a lean + agile supply chain, adding a customer order rapid processing process in the ERP system to ensure that the customer delivery time rate reaches 100%.

●Perfect industrial chain and rich management experience over the years have enhanced Sunbow's competitive strength and anti-risk ability, making our products more competitive in price.

For additional information and immediate assistance with your requirements, designs and applications, please call 021-63306968 Or send email to :sales@sunbowgroup.com
