Switching Power Transformer Cores
To DC/AC and DC/DC converter used in EV, rail traffic, medical equipment and…, a core with high switching frequency, high power output, compact size and small weight, low loss and high energy efficiency are always demanded.
Product Introduction
TOROIDAL TAPE WOUND CORE FOR SWITCHING POWER TRANSFORMERS
To DC/AC and DC/DC converter used in EV, rail traffic, medical equipment and…, a core with high switching frequency, high power output, compact size and small weight, low loss and high energy efficiency are always demanded.
Basing on outstanding magnetic properties, such as: higher magnetic saturation flux density (1.23T), higher permeability (up to 200,000), better linearity and response of frequency to permeability and smaller low temperature dependence of permeability than normally ferrite (Mn-Zn), SWFNA nanocrystalline cores has become the first option for purpose of high-frequency power transformer.
Applications
High power high-frequency switching power transformer in telecommunication power supplies, UPSs, high-frequency heating power supplies, inverter welding machine power supplies and laser machine power supplies etc. instead of ferrite materials
Performance Features
High saturation magnetic flux density --three times to ferrite core and 2 times output power at the same size.
High permeability and low coercive
Low loss --Smaller excitation current enables low copper loss
Excellent stability
FEATURE
> High Frequency-80KHz
> High Saturation Flux Density
> Good Linearity & Response of Frequency to Permeability
BENEFIT
> High Transmittable Power
> Small Dimension & Weight
> High Energy Efficiency
Low Core Loss
HIGH-LIGHT
>> High Transmittable Power <<
>> Energy Efficiency to 99% <<
>>Smaller Dimension (1.5 times) than Ferrite<<
>>Wide Frequency Range-80KHz <<
CORE LOSS
In different magnetic flux density and different frequency (especially in high frequency range), SWFNA nanocrystalline core always has much lower loss than ferrite (Mn-Zn) core.
LINEARITY OF PERMEABILITY
In order to fill the specific technical requirements of power transformer core, magnetic properties nanocrystalline alloy could be adjusted by special annealing technique.
Figure 4. as a static hysteresis loop indicates that SWFNA power transformer core keeps very high linearity of permeability during the full current range.
Fig.4 Static hysteresis loop of SWFNA core
|
Part Code FNA-PT |
Mean Path Length mm |
Outer Diameter a/mm |
Inner Diameter b/mm |
Height c/mm |
Cross Section Ac/mm2 |
Weight g |
|
163-T001 HF |
163.3 |
68.0+0.8 |
35.0+0.8 |
23.0+0.5 |
187.0 |
220.0 |
|
172-T002 HF |
172.7 |
74.0+0.8 |
35.0+0.8 |
29.0+0.5 |
292.0 |
363.0 |
|
196-T003 HF |
196.3 |
79.0+0.8 |
44.0+0.8 |
29.0+0.5 |
244.0 |
344.0 |
|
251-T004 HF |
251.3 |
105.0+1.0 |
54.0+1.0 |
25.0+0.5 |
312.0 |
564.0 |
|
282-T005 HF |
282.7 |
123.0+1.0 |
56.0+1.0 |
35.0+0.5 |
702.0 |
1429.0 |
|
328-T006 HF |
328.3 |
147.0+1.0 |
64.0+1.0 |
40.0+0.5 |
1024.0 |
2419.0 |
|
329-T007 HF |
329.9 |
135.0+1.0 |
75.0+1.0 |
46.0+0.5 |
780.0 |
1852.0 |
|
345-T008 HF |
345.6 |
135.0+1.0 |
85.0+1.0 |
30.0+0.5 |
390.0 |
970.0 |
|
345-T009 HF |
345.6 |
135.0+1.0 |
85.0+1.0 |
35.0+0.5 |
468.0 |
1164.0 |
|
345-T010 HF |
345.6 |
135.0+1.0 |
85.0+1.0 |
55.0+0.5 |
780.0 |
1940.0 |
Definition: T=Toroid shape; HF=High Frequency; PT=Power Transformer;
*Customization: other dimensions are available to be customized.
|

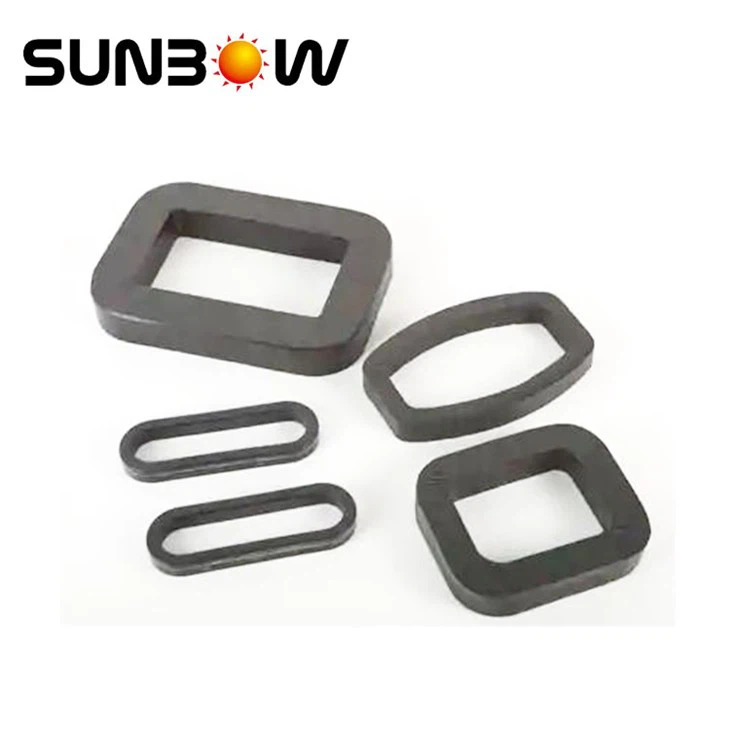

Part Code FNA-PT |
Length a/mm |
Width b/mm |
Window length c/mm |
Window width d/mm |
Leg Width e/mm |
Height f/mm |
Mean Path Length mm |
Cross Section cm2 |
Weight g |
|
110-R001 HF |
110.0+1.5 |
60.0+1.5 |
70.0 |
20.0 |
20.0+0.5 |
25.0+0.5 |
243.0 |
400.0 |
750.0 |
|
130-R002 HF |
130.0+1.5 |
75.0+1.5 |
90.0 |
35.0 |
20.0+0.5 |
20.0+0.5 |
313.0 |
320.0 |
760.0 |
|
160-R003 HF |
160.0+1.5 |
100.0+1.5 |
110.0 |
50.0 |
25.0+0.5 |
60.0+0.5 |
399.0 |
1200.0 |
3600.0 |
|
180-R004 HF |
180.0+1.5 |
160.0+1.5 |
100.0 |
80.0 |
40.0+0.5 |
50.0+0.5 |
486.0 |
1600.0 |
5810.0 |
|
200-R005 HF |
200.0+1.5 |
110.0+1.5 |
140.0 |
50.0 |
30.0+0.5 |
35.0+0.5 |
474.0 |
840.0 |
2980.0 |
|
230-R006 HF |
230.0+1.5 |
120.0+1.5 |
160.0 |
50.0 |
35.0+0.5 |
30.0+0.5 |
530.0 |
840.0 |
3320.0 |
|
250-R007 HF |
250.0+1.5 |
150.0+1.5 |
160.0 |
60.0 |
45.0+0.5 |
50.0+0.5 |
581.0 |
1800.0 |
7780.0 |
|
370-R008 HF |
370.0+1.5 |
260.0+1.5 |
270.0 |
160.0 |
50.0+0.5 |
50.0+0.5 |
1017.0 |
2000.0 |
14920.0 |
|
415-R009 HF |
415.0+1.5 |
250.0+1.5 |
315.0 |
150.0 |
50.0+0.5 |
50.0+0.5 |
1087.0 |
2000.0 |
15920.0 |
|
650-R010 HF |
650.0+1.5 |
345.0+1.5 |
360.0 |
145.0 |
100.0+0.5 |
200.0+0.5 |
1324.0 |
16000.0 |
154760.0 |
Definition: R=Rectangular shape; HF=High Frequency; PT=Power Transformer
*Customization: other dimensions are available to be customized.
FAQ
1.Which countries you are selling to ?
We export our cores to Germany, Italy, France, UK, Turkey, Spain, Sweden, Poland, Czech, Slovakia, Korea, Thailand, Malaysia, Indonesia, Vietnam, USA, Columbia, Brazil, Australia etc.
2.What is your payment terms?
We accept TT and L/C.
Advantages
1.We produce amorphous and nanocrystalline ribbons as raw materials for cores, so we can adjust the formulation of raw materials according to application and performance requirements
2.more then 13 years experiences in magnetic cores manufacturing and exporting.
3.Various types magnetic materials available: Silion Steels, Nanocrystalline ribbon, Amorphous Ribbon, Mumetal
4.professional customized service,various types of cores ,give you the best solution
Three steps to start your customization today!
1. Tell us what you need,please call 021-63306968 Or send email to :sales@sunbowgroup.com
As every application has its own characteristics and requirements.
We provide customized services according to your application
Just tell us your design concept and basic parameters
We design & produce goods based on clients' specifications & drawing:
1.Bare core size, Size finished
2.Al requirement @ different frequency
2. Get solution & quote
We will work on the best solution and provide primarily specification& quote for your review.
3. Sample production and mass production
We will start mass production after customer confirmation and validation of samples.
