Amorphous And Nanocrystalline Ribbon

Name: China Amorphous And Nanocrystalline Ribbon Manufacturers Suppliers Factory - Made in China - SUNBOW
Brand: SUNBOW
SKU: 253307132

Development and Application of
Amorphous & nanocrystalline soft magnetic materials
Sunbow group Professional engaged in high precision nano crystalline materials and products manufacturing and research and development

Send Inquiry

Development and Application of

Sunbow group Professional engaged in high precision nano crystalline materials and products manufacturing and research and development

Ultra thin and ultra wide Amorphous & Nanocrystalline Alloy Ribbon, Magnetic Cores and Devices;

Annual output of 3000 tons of high precision nano crystalline material, all kinds of cores and components 15KK .

Sunbow owns a R&D team, providing customers with amorphous and nanocrystalline products and application solutions.

Over 10-year research experiences in amorphous & nanocrystalline soft magnetic alloys;

Internationally leading fabricating & testing equipment

The ultra-thin and ultra wide nanocrystals and new ultra-thin amorphous ribbons that can be stably mass-produced are at the world's advanced level

Spec spectrometer M11

product-531-254

product-531-263

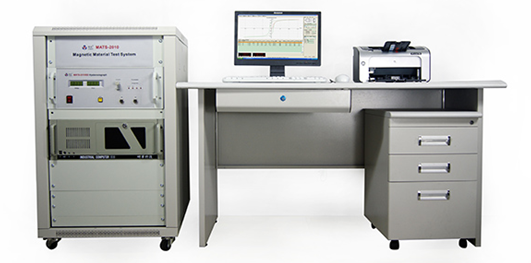

Magnetic Automatic Test System

product-460-166

product-417-145

LCR digital bridge

product-440-207

Ferrite Core Meter

product-561-378

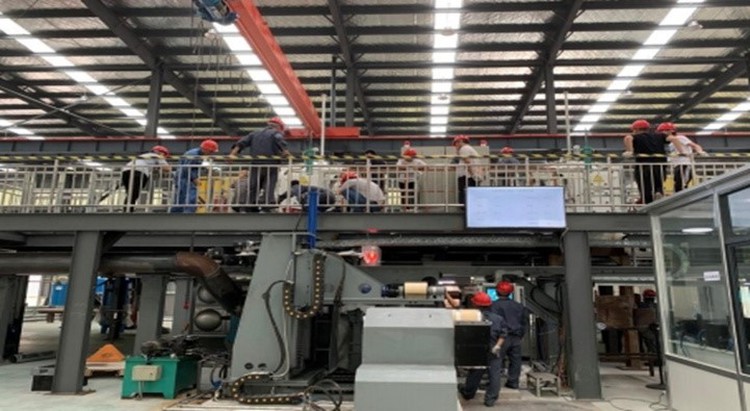

Material Preparation Engineering Test Platform

Sunbow Nanocrystalline Ribbon Selection Table and Its Parameters

Classification	SUNBOW Brand	Domestic universal brand	VAC Brand	Spec		Typical Parameter	Application
Classification	SUNBOW Brand	Domestic universal brand	VAC Brand	Width(mm)	thickness(μm)	Typical Parameter	Application
Distribution transformer	SW101	1K101		2-80	16-25	1,Bs≥1.5T 2,Total loss Ps, W/kg,≤0.3 3, Customizable width specifications	Distribution transformers and reactors
Transformer type	SW1000	1K107		10-40	28-38	1, Permeability μ0.08≥100000 2, ≤10mm,we recommend 23-27μm SW800 Slitting ribbon 3, Customizable width specifications	Transformer type
Inversion type	SW500	1K107A	VP500	15-35	26-35	1, Core Loss P0.5/20k,≤25 W/kg 2, Permeability μ0.08≈50000	Inverter welding machine, welding robot, medical, environmentally friendly power supply
Home appliance CMC	SW600			5-50		1, Core Type Size：32 * 20 * 10,Inductance ：38.0μH ≤ AL ≤ 52.0μH at f= 1kHz /0.25V ,100Ω ,25±3℃ AL ≥ 12.0μH at f= 150kHz /0.25V ,100Ω ,25±3℃ 2, Loss P0.5/20k,≤15 W/kg	Variable frequency household appliances
Normal CMC	SW800	1K107B	VP800	2-80	14-25	1, Core Type Size：32 * 20 * 10.Permeability can reach 100000 at 1KHz,at 100kHz, ≈40000 depending on the thickness 2, Core Loss P0.5/20k,≤15 W/kg 3,Bs≈1.2T	Car standard common mode, photovoltaic inductor
Low magnetic permeability (customizable)	SW300			2-80	16-23	Permeability μ0.08≈30000~60000	Low magnetic permeability (customizable)
	SW220				16-23	Permeability μ0.08≈15000~25000
	SW200				16-23	Permeability μ0.08≈10000~20000
	SW50		VP250		16-23	Permeability μ0.08≈5000~8000
	SW20				16-23	Permeability μ0.08≈2000~5000
	SW10				16-23	Permeability μ0.08≈1000~1000
High-power	SW800	1K107B	VP800		16-21	Tension treated magnetic core, magnetic permeability can be as low as 200	High-power inductor
Cobalt based amorphous	6025Z				20±2	Bs≈0.8T	Magnetic amplifier, pulse transformer, spike suppressor
Cobalt based amorphous	2714A				20±2	Bs≈0.8T	Magnetic amplifier, pulse transformer, spike suppressor
At present, we can roll shear specifications(mm)：2,2.3,2.5,2.7,3,3.2,4,4.5,5,6,6.5,7,8,10,12,13,15,16.5,17,18,20,21,25,28,30,35
