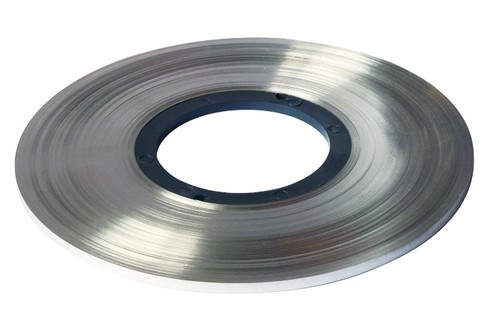

Nano Ribbon 1K107

Name: China Nano Ribbon 1K107 Manufacturers Suppliers Factory - Nano Ribbon 1K107 Made in China - SUNBOW
Brand: SUNBOW
SKU: 222081245

●Cores of switching power supply transformers and pulse transformers
●Cores of power transformers and precision current transformers
●Cores of current transformers for current-leakage protection
●Cores of filter inductors, energy storage inductors and reactors

Send Inquiry

Applications:

●Cores of switching power supply transformers and pulse transformers

●Cores of power transformers and precision current transformers

●Cores of current transformers for current-leakage protection

●Cores of filter inductors, energy storage inductors and reactors

●Cores of EMC CM and DM inductors

●Cores and magnetic beads of saturation reactors, magnetic amplifier and peak suppressors

Common Mode Choke

-High saturate induction-reduce volume of transformers

-Excellent impedance frequency characteristic
-Outstanding ability to resist balance current
-Excellent thermal stability

Small Transformer

-High saturate induction-reduce volume of transformers
-High permeability and low coercivity-improve efficiency, lower exciting power and reduce copper loss
-Low core loss-reduce temperature rise of transformers
-Excellent thermal stability-with the serving temperature of -55℃~130℃ for long time

Large Power Transformer Cores –Cutting

-Low core loss
-High operation flux density
-High operation temperature

Current Transformer

-High permeability,low coercivity
-Low core loss,low phase error,low amplitude
-Higher saturation magnetic flux density and wider measuring current range
-Low permenbility ,high anti drift ability. Sensitive to small leakage current and good ability of resisting large current impact
-Excellent temperature stability

Performance Features:

●High saturation magnetic induction -Reducing transformer volume

●High permeability and low coercive force- Improving transformer efficiency and sensitivity

●Low loss- Reducing transformer temperature rise

●Excellent stability-Suitable for long-run operation at temperature 130℃

●Low price- highest function-price ratio among metal soft magnetic materials

Physical Properties:

Saturation Magnetostriction	＜2*10^-6	Saturation Magnetic Induction	1.25 T
Density, d	7.2g/cm³	Curie Temp.	560℃
Resistivity	130μΩ·cm	Crystallization Temp.	510℃
Conti. Operating Temp.	-55-130℃	Hardness	880Hv

Magnetic Properties:

Property	Annealing Without Magnetic Field	Magnetic Field Annealing Transversal	Magnetic Field Annealing Longitudinal
Initial permeability	＞8*104	＞2*104	＞1*104
Max. permeability	＞45*104	＞5*104	＞50*104
Residual Magnetic Induction	0.6T	＜0.2T	＞0.85T
coercive force	＜0.8A/m	＜1.8A/m	＜1.8A/m
Iron Loss P (20Hz,0.5T)	＜25W/kg	＜50W/kg	＜90W/kg
Iron Loss P (100KHz,0.3T)	＜150W/kg	＜150W/kg	＜300W/kg
Iron Loss Variation(-55-125℃)	＜15%	＜15%	＜15%

Product Specification

Type	Width(mm)	Thickness(μm)	Type	Width(mm)	Thickness(μm)
1K107-5mm	5±0.2	30±5	1K107-20mm	20±0.2	30±5
1K107-6.5mm	6.5±0.2	30±5	1K107-25mm	25±0.2	30±5
1K107-8mm	8±0.2	30±5	1K107-30mm	30±0.2	30±5
1K107-10mm	10±0.2	30±5	1K107-35mm	35±0.2	30±5
1K107-15mm	15±0.2	30±5

SUNBOW can produce other customized strips per user's request.
