Nanocrystalline Ribbon 1K107B
Nanocrystalline ribbon 1K107B is mainly applied in the production of advanced common mode chokes, high frequency power transformers, precision current transformers, magnetic amplifiers and magnetic shielding sheets, etc.
Product specifications
|
Thickness (mm) |
0.018-0.025 |
|
Stack factor σ |
＞0.8 |
|
Magnetic induction B800/T |
≥1.2 |
|
Coercivity / Hc (A/m) |
≤1.6 |
|
Core loss P0.5T/20K/(W/kg) |
≤25 |
|
Core loss P0.3T/100K/(W/kg) |
≤100 |
|
Permeability μ (1kHz) |
≥80000 |
|
Permeability μ (10kHz) |
≥60000 |
|
Permeability μ (100kHz) |
≥10000 |
|
Curie temperature (℃) |
570 |
|
Operating temperature (℃) |
‐50~120 |
|
Magnetostriction / λs |
＜2.0x10-6 |
Ribbon Dimensions and Lamination Factor
Application area:
Nanocrystalline ribbon 1K107B is mainly applied in the production of advanced common mode chokes, high frequency power transformers, precision current transformers, magnetic amplifiers and magnetic shielding sheets, etc.
Switch power transformer and Pulse transformer iron core
Power transformer , precision current mutual inductor iron core
Leakage protection switch mutual inductor iron core
Filtering inductance, storage inductance, the electric reactor iron core
EMC common mode inductance and differential mode inductance iron core
Saturable reactor, magnetic amplifier, Spike killer, Pulse Compressor iron core and magnetic bead
Features:
High Saturation magnetic induction - reduce transformer volume
High magnetic permeability low coercive force- improve transformer efficiency, mutual inductor sensitivity, reduce coil distribution parameters
Low loss- reduce transformer temperature rise
Good temperature stability - under 130℃ for long-term work
Lower price - has the best cost performance of all the metal soft magnetic material
|
Item |
Width (mm) |
Thickness(μm) |
|
1 |
3 |
18-25 |
|
2 |
3.2 |
18-25 |
|
3 |
3.5 |
18-25 |
|
4 |
4.5 |
18-25 |
|
5 |
5 |
18-25 |
|
6 |
6 |
18-25 |
|
7 |
6.5 |
18-25 |
|
8 |
8 |
18-25 |
|
9 |
10 |
18-25 |
|
10 |
15 |
18-25 |
|
11 |
20 |
18-25 |
|
12 |
25 |
18-25 |
|
13 |
30 |
18-25 |
Three steps to start your customization today!
Tell us what you need
We supply nanocrystaline Soft Magnetic Material &Amorphous Soft Magnetic Material , please advise your request information:
1.Material Type
2.Application - Current Transformer, CMC, Audio, etc.?
3.Strips Width
4.Srips Thickness-- µm?
5.Potential Quantity -- kg?
Get solution & quote
We will work on the best solution and provide primarily specification& quote for your review.
Sample production and mass production
We will start mass production after customer confirmation and validation of samples.

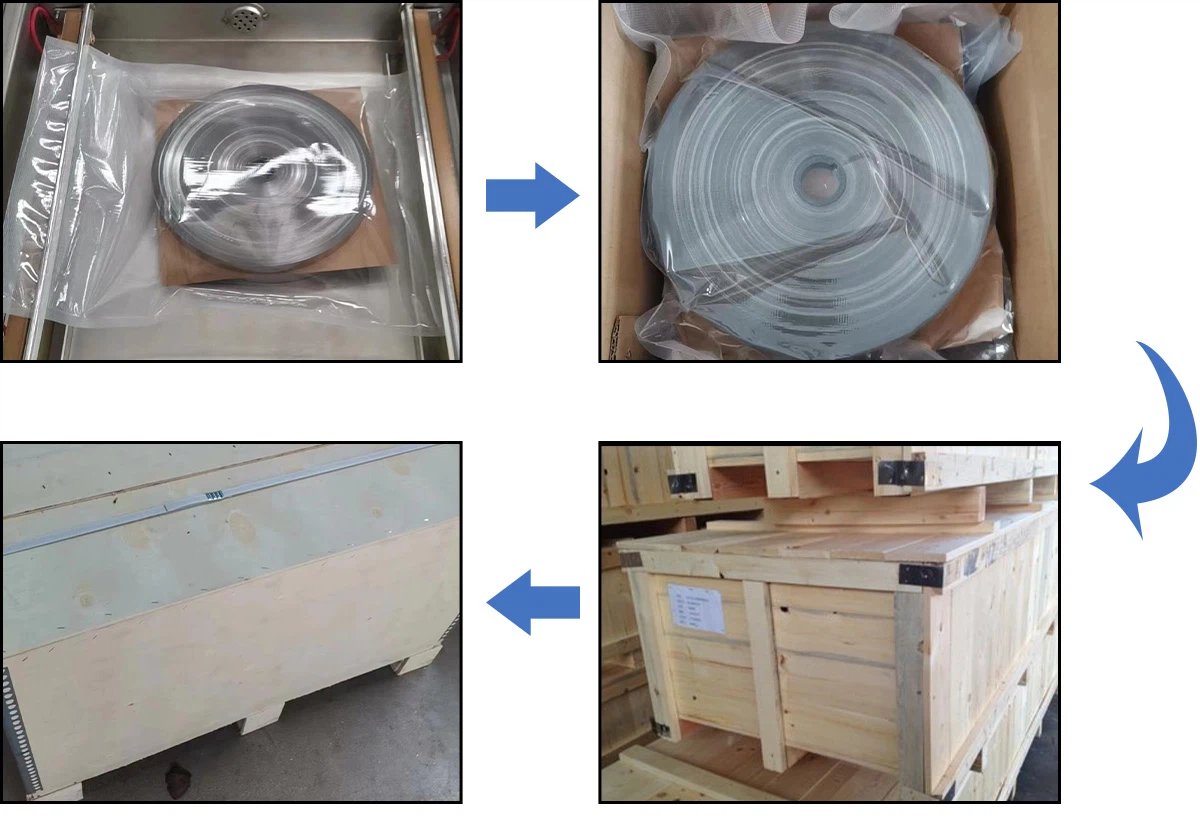

Package:
